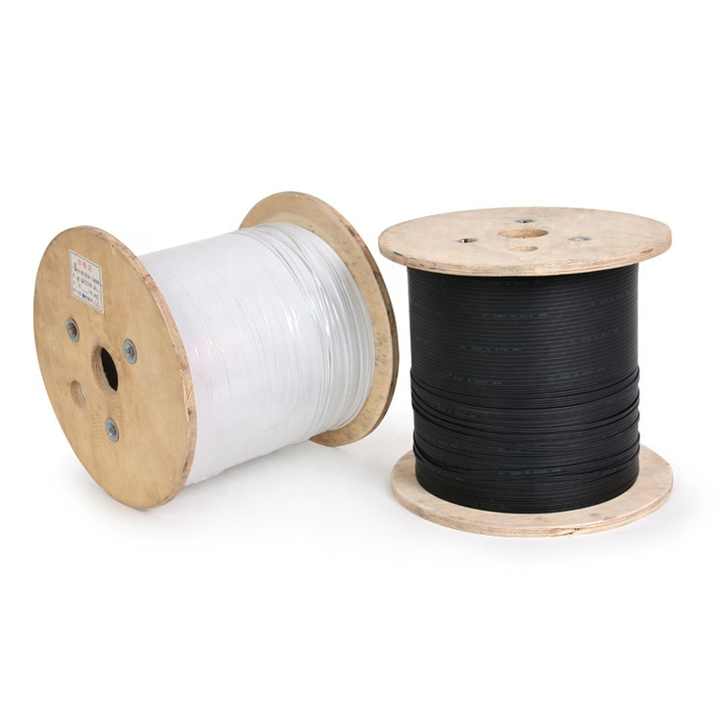

Factory Free sample 1,2,4 cores fiber optic FTTH drop cable

FOB Reference Price:Get Latest Price
$0.04 - $0.09 / Meter | 1000 Meter/Meters (Min. Order)
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Meters) 1 - 10000 10001 - 100000 >100000
Est. Time(days) 3 5 Negotiable
Customization:
Customized logo (Min. Order: 1000 Meters)
Customized packaging (Min. Order: 1000 Meters)

More

Graphic customization (Min. Order: 1000 Meters) Less
Samples:
$0.42 /Meter | 1 Meter (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
FTTH drop cable
Type:
Fiber Optic Cable
Single-Mode Fiber:
G655,G652D,G657A
Multi-Mode Fiber:
OM1.OM2.OM3.OM4.OM5
No. of Fiber:
1-4
Use:
FTTH
Product name:
FTTH drop cable
Fiber count:
1~4 fibers
Fiber Type:
singlemode(G652D,G657A) or multimode
Diameter:
2.0*3.0 mm
Jacket color:
Black or customize
Material:
LSZH
Operating temperature:
-40℃- +70℃
Warranty:
20 years
Certificate:
ISO,CE,UL,ROHS
Application:
FTTX , outdoor
Product Certification certification
RoHS Certified.
UL Certified.
Supply Ability
Supply Ability:
1000 Kilometer/Kilometers per Quarter
Packaging & Delivery
Packaging Details

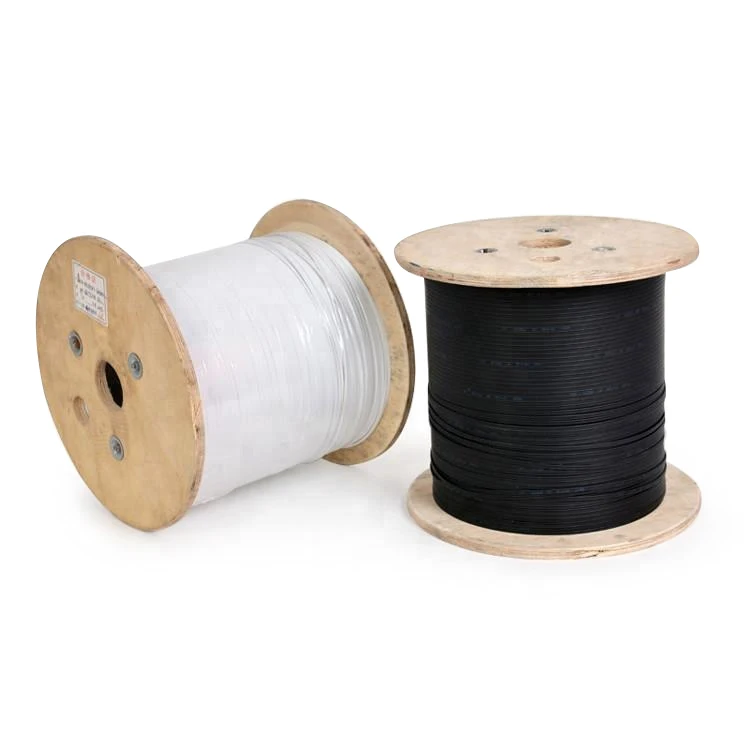

2KM/ Drum
Port
Shenzhen
Lead Time :
Quantity(Meters) 1 - 10000 10001 - 100000 >100000
Est. Time(days) 3 5 To be negotiated
Video Description
Products Description

Factory Free sample 1,2,4 cores fiber optic FTTH drop cable

FTTH indoor cable has a much greater bandwidth to carry data and less susceptible to interference thancommon indoor fiber cables and it's ideal for indoor cabling, end users directly cabin, and access network.

Features

Small diameter and light weight, water-resistant, soft and bendable, easy to deploy and maintenance
Meet the requirement of thunder-proof, anti-rodent or waterproof
Good to use for fiber to the home last mile solution

Application

Outdoor aerial application
Used in the FTTH projects
High speed optical routes in building

Technical parameters
Cable type
OD(mm)
NominalWeiNominalWeight(kg/km)ght(kg/km)
tensile strength(N)
Crush Resistance(N/100MM)
Bending Radius(mm)
Short-term
Long-term
Short-term
Long-term
Dynamic
Static
GJYXFCH-1Xn
(2.0±0.1)*( 6.2±0.3)
23.6
600
300
2200
1000
20D
15D
GJYXFCH-2Xn
(2.0±0.1)*( 6.2±0.3)
23.6
600
300
2200
1000
20D
15D
GJYXFCH-3Xn
(2.0±0.1)*( 6.2±0.3)
23.6
600
300
2200
1000
20D
15D
GJYXFCH-4Xn
(2.0±0.1)*( 6.2±0.3)
23.6
600
300
2200
1000
20D
15D
Storage/Working temperature(℃)
-20~+60

Drop cables are located on the subscriber end to connect the terminal of a distribution cable to a subscriber’s premises. They are typicality small diameter, low fiber count cables with limited unsupported span lengths, which can be installed aerially, underground or buried. As it is used in outdoor, drop cable shall have a minimum pull strength of 1335 Newtons according to the industry standard. Drop cables are available in many different types. Flat Type Drop Cable, also known as flat drop cable, with a flat out-looking, usually consists of a polyethylene jacket, several fibers and two dielectric strength members to give high crush resistance. Figure-8 Aerial Drop Cable is self-supporting cable, with the cable fixed to a steel wire, designed for easy and economical aerial installation for outdoor applications. Round Drop Cable usually contains a single bend-insensitive fiber buffered and surrounded by dielectric strength members and an outer jacket, which can provide durability and reliability in the drop segment of the network.

FEATURES

Good mechanical and environmental characteristics; Flame retardant characteristics meets the requirements of relevant standards; The mechanical characteristics meets the requirements of relevant standards; Soft, flexible, easy to splice, and with big capacity data transmission; Meet various requirements of market and clients.

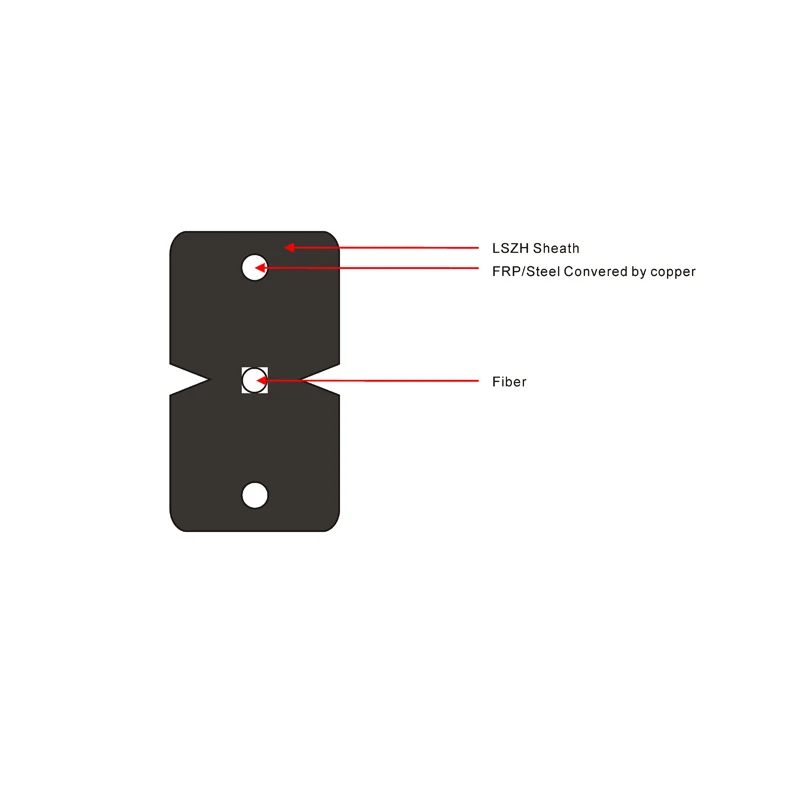

GJXFH Flat Drop Cable

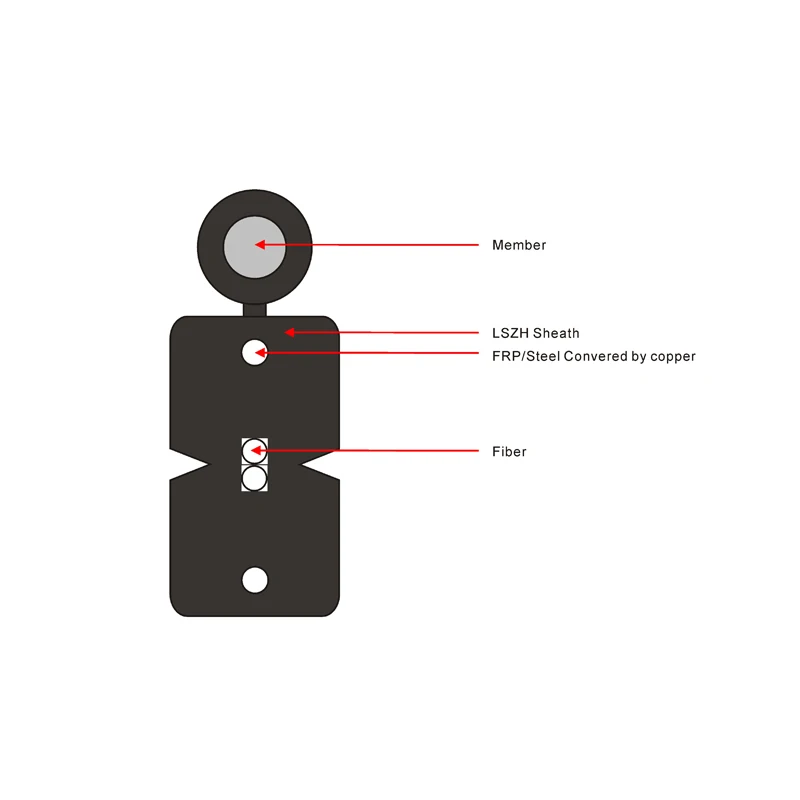

GJYXFCH self-support Flat Drop Cable
FTTP Tight Buffered Indoor/Outdoor Cable
GYTC8H Round Self-Suppot Cable
GYFTY Outdoor Cable
GYFTY53 Outdoor Cable
GYTS Outdoor Cable
GYTA53 Outdoor Cable
Main Products
Fiber Optic Cable
Patch Cord&Pigtail
MPO/MTP
FTTX Cable Assembly
PLC Splitter
Fast Connector
Our Company

Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the honorary title of National High-tech enterprise by Shenzhen government in 2014.

With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 23 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 8 PLC Splitter production lines.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.

All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.

DYS Certifications

INNOVATIVE TECHNOLOGY

We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.

Our Exhibitions

OFC

Booth#: 4722    Date: 5-7 March    Adds: San Diego, USA

COMMUNICASIA

Booth#: BT3-07
Date: 18-20 June
Adds: Marina Bay Sands Singapore

ECOC

Booth#: 339
Date: 24-26 September
Adds: Rome, Italy

COMMWORLD

Booth#: G16
Date: 16th-19th, August
Adds: SMX Convention Center Manila

Packing & Delivery

Sample

Within 1-2 working days

Wholesale orders

3-7 working days according various quantities

FAQ

1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.

2. When our company be established?
Answer: We started from year 2008.

3. What's our main products?
Answer: DYS dedicates to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.

4. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines

5. What certificate we have?
Answer: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.
