12 core OM3 OM4 Breakout optical cable MPO to LC Fan out 0.9mm 12 color fiber Optic Patch Cord with MPO cassette

FOB Reference Price:Get Latest Price
$5.20 - $30.00 / Piece | 2 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 500 501 - 5000 >5000
Est. Time(days) 3 5 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
DYS/OEM
Model Number:
MTP-LC OM3
Type:
Optical Fibers
No. of Fiber:
12.
Use:
FTTP
Connector type:
MTP Male
Connector fiber count:
8, 12, 24
Polish:
PC,
Housing color:
SM (Standard green, Elite yellow) MM (Standard beige, Elite aqua)
Insertion Loss:
<0.5dB
Durability:
500 Matings
Outer Jacket material:
LSZH, PVC, OFNR, OFNP
Fiber Brand:
Corning, OFS, YOFC
Fiber Count:
12 Core
Fanout legs:
0.9mm
Product Certification certification
CE Certified.
FCC Certified.
UL Certified.
Supply Ability
Supply Ability:
20000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Individual box or according to customer's request
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 500 501 - 5000 >5000
Est. Time(days) 3 5 To be negotiated
Product Description
①MPO/MTP Trunk Cable
②MPO/MTP Harnesses Cables
③MPO/MTP Fan out 0.9mm Patch Cords
④IP-Series MPO/MTP Assembly
⑤High Density Patch Cords
⑥MPO/MTP Loopback
⑦MT Patch Cords
⑧MPO/MTP Cassettes
⑨MPO/MTP Fiber Optic Patch Panel

IPFX(MTP/MO)

ODVA(MTP/MPO)

High Density

12 core OM3 OM4 Breakout optical cable MPO to LC Fan out 0.9mm 12 color fiber Optic Patch Cord with MPO cassette

APPLICATION

Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures

FEATURES

Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability

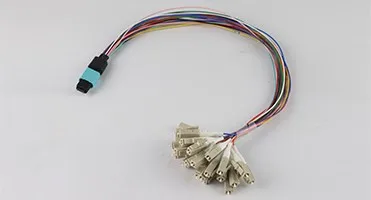

MPO/MTP-LC

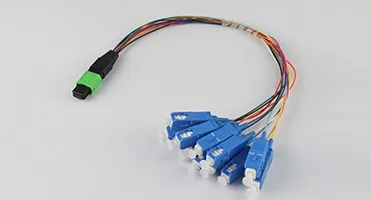

MPO/MTP-SC

Product Parameters
Performance Level
Standard
Elite
Connector
Mode
Endface
IL(max) (dB)
RL(min) (dB)
IL(max) (dB)
RL(min) (dB)
MPO/MTP
SM
12F/APC
≤0.70
≥60
≤0.35
≥60
24F/APC
≤0.75
≥60
≤0.35
≥60
48F/APC
≤0.75
≥60


MM
12F/PC
≤0.50
≥20
≤0.35
≥20
24F/PC
≤0.50
≥20
≤0.35
≥20
48F/PC
≤0.50
≥20


LC/SC/FC/ST
SM
≤0.30
≥60
≤0.10
≥60
UPC
≤0.20
≥50
≤0.10
≥50
MM
PC
≤0.20
≥30
≤0.10
≥30

Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.

Mechanical Properties
Item
Criteria
Conformance
△IL After 50 Matings
MPO/MTP
≤0.3dB
GR-1435
△IL After 500 Matings
LC/SC/FC/ST
≤0.2dB
IEC 61300-2-2
Min Bend Radius (Dynamic)
20*OD (Cable Diameter)
Min Bend Radius (Static )
15*OD (Cable Diameter)
Environment Conditions
Item
Criteria
Conformance
Operation Temperature
-40~60°C
IEC 61753-1
Storage Temperature
-45~85°C
Main Products
Fiber Optic Cable
Patch Cord&Pigtail
MPO/MTP
FTTX Cable Assembly
PLC Splitter
Fast Connector
Our Company

Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the honorary title of National High-tech enterprise by Shenzhen government in 2014.

With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 23 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 8 PLC Splitter production lines.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.

All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.

DYS Certifications

INNOVATIVE TECHNOLOGY

We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.

Our Exhibitions

OFC 2019

Booth#: 4722    Date: 5-7 March    Adds: San Diego, USA

COMMUNICASIA 2019

Booth#: BT3-07
Date: 18-20 June
Adds: Marina Bay Sands Singapore

ECOC 2018

Booth#: 339
Date: 24-26 September
Adds: Rome, Italy

COMMWORLD 2018

Booth#: G16
Date: 16th-19th, August
Adds: SMX Convention Center Manila

Packing & Delivery

Sample

Within 1-2 working days

Wholesale orders

3-7 working days according various quantities

FAQ

1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.

2. When our company be established?
Answer: We started from year 2008.

3. What's our main products?
Answer: DYS dedicates to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.

4. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines

5. What certificate we have?
Answer: ISO 9001: 2008, RoSH, CE, High and New Tech Enterprise Certficate.
